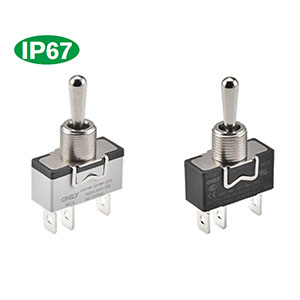

TOGGLE (SNAP)

SPECIFICATION:

RATING :
16A 125VAC, 10A 277VAC (UL, CUL)
16(6)A 250V~ T100 (ENEC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE: 0~100℃
ELECTRICAL LIFE: 10,000 CYCLES

SPECIFICATION:

RATING :
16A 125VAC, 10A 277VAC (UL, CUL)
16(6)A 250V~ T100 (ENEC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE: 0~100℃
ELECTRICAL LIFE: 10,000 CYCLES

SPECIFICATION:

RATING :
15A 125VAC, 10A 250VAC (UL, CUL)
20A 125/250VAC (IN HOUSE TEST)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE:0~55℃
ELECTRICAL LIFE: 6,000 CYCLES

SPECIFICATION:

RATING :
15A 125VAC, 10A 250VAC (UL, CUL)
20A 125/250VAC (IN HOUSE TEST)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0~55℃
ELECTRICAL LIFE : 6,000 CYCLES

SPECIFICATION:

RATING :
15A 125VAC, 10A 250VAC (UL, CUL)
20A 125/250VAC (IN HOUSE TEST)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE：0~55℃
ELECTRICAL LIFE：6,000 CYCLES

SPECIFICATION:

RATING :16A 125VAC, 16A 250AC (UL, CUL)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE：0~65℃
ELECTRICAL LIFE：6,000 CYCLES

SPECIFICATION:

RATING : 16(6)A 250V~ T55 (ENEC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE：0~55℃
ELECTRICAL LIFE : 10000 CYCLES

SPECIFICATION:

RATING : 16A(6)A 250V~T55 (ENEC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE：0~55℃
ELECTRICAL LIFE : 10000 CYCLES
　

SPECIFICATION:

RATING :
20GP/RA 250V~ 25T125 (UL,CUL,ENEC)
16(6)A 250V~ 40T125 (UL,CUL,ENEC)
7A 72VDC 14A 36VDC 40T125 (UL,CUL,ENEC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE: -40~125°C
ELECTRICAL LIFE : 10,000 CYCLES
