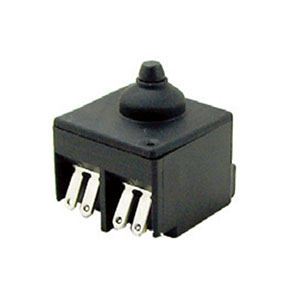

TRIGGER SWITCH

SPECIFICATION:

RATING :
13A 125VAC, 6A 250VAC (UL, CUL)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0~55℃
ELECTRICAL LIFE : 50,000 CYCLES

SPECIFICATION:

RATING :
22A 125VAC, 10(10)A 250VAC T85 5E4(UL, CUL, ENEC)
10A 125VDC~ T55 (UL, CUL, ENEC)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0~85℃
ELECTRICAL LIFE : 50,000 CYCLES

SPECIFICATION:

RATING :
16A 125VAC, 8A 250VAC (UL, CUL)
INSULATION RESISTANCE : DC 500V 100MΩ OR MORE
CONTACT RESISTANCE : DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE : AC 1500V FOR 1 Min
AMBIENT TEMPERATURE : 0~55℃
ELECTRICAL LIFE : 6,000 CYCLES
